Sunset-20 Studio Mixer £399

CLICK ON IMAGE FOR MORE DETAILS
AND ONLINE ORDERING

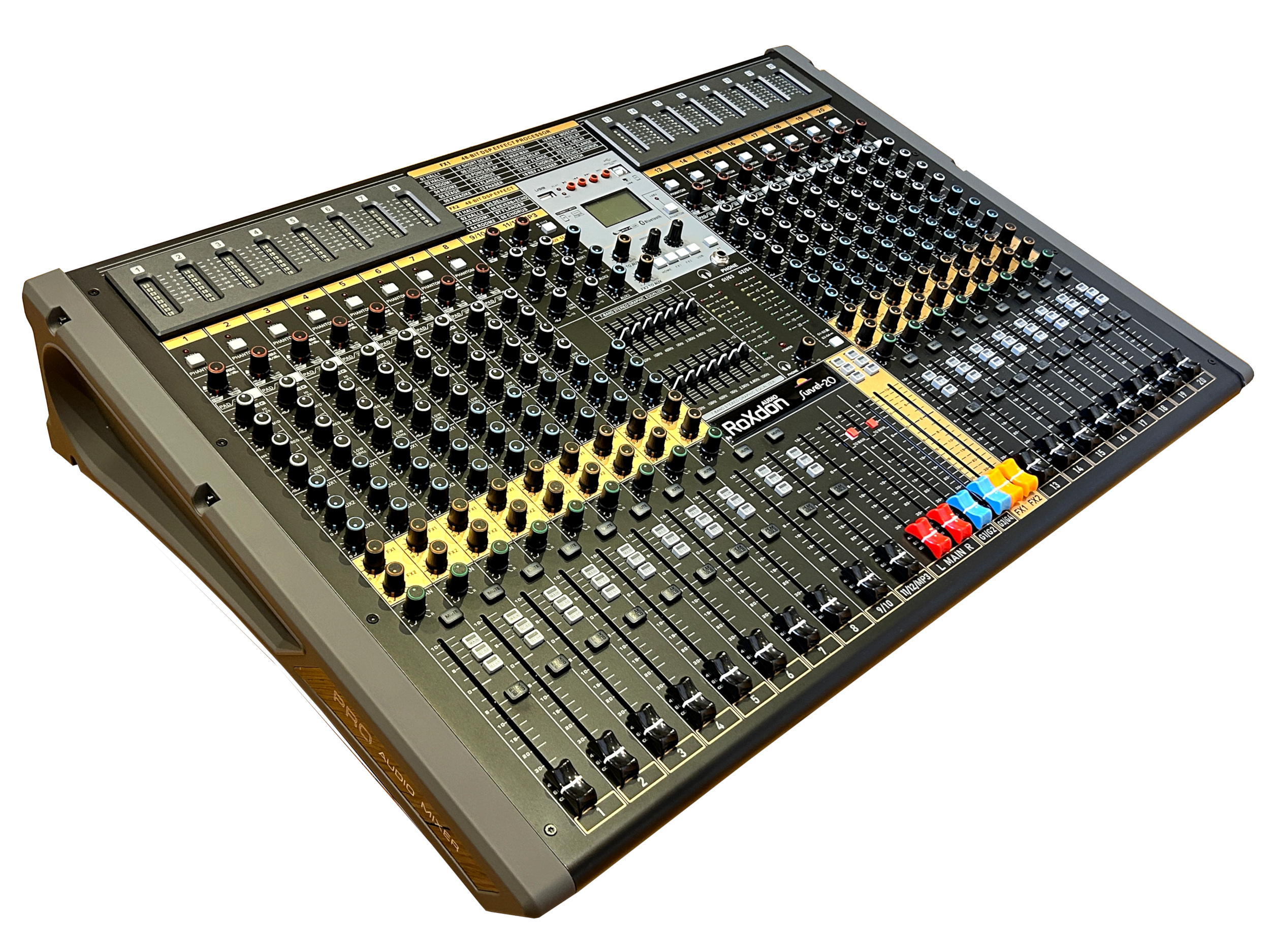

Following on from the successful Soundex-16 Console, RoXdon introduce the new Sunset-20 Multi-Channel Live / Studio Mixing Console featuring balanced microphone inputs on 16 channels with switchable phantom power similar to large format mixing consoles. Channels 9/10 and 11/12 are stereo channels with the option to use as 2 mono Mic Channels.

Each of the channels 1-8 and 13-20 feature 100mm smooth faders, a 3-band EQ section with sweepable mids, 3 Auxiliary Sends for external effects or processors and dedicated FX1 (24 effects) and FX2 (8 effects) for the onboard Digital Multi-Effects Processor. As with all our mixing consoles we have also included channel LED VU meters for accurate input level adjustment.

The small footprint of the Sunset-20 is ideal for small room analog studios where space is at a premium.

FEATURES

INPUTS

*  16 Mic / Line dual balanced TRS/XLR inputs (1-8 and 13-20)
*  Channels 9/10 and 11/12 are stereo line inputs or 2 x mic inputs
*  48v Phantom Power switch on all channels
*  Phantom Power Master Switch with LED
*  Input Gain Control
*  3-Band EQ with sweepable mids
*  3 Auxiliary Sends
*  Left/Right Pan Control
*  Channel Mute button
*  Bus Route Switches (Master, G1-G2 and G3-G4)
*  Solo Buttons
*  100mm Channel Input Faders
*  Channel LED Bargraph VU meters

MASTER

*  Dual 7-Band Equaliser on L-R outputs for room equalisation
*  Left/Right 100mm Output Faders
*  G1-G2 / G3-G4 / FX 100mm Output Faders
*  Main balanced XLR left / right output sockets
*  XLR balanced L/R, G1-G2, G3-G4 output sockets
*  Master / G1-G2 and G3-G4 (selectable) Bus Bargraph VU Meters
*  TRS Headphone output + Level Control
*  Bluetooth input capability
*  USB Digital input (MP3 play)
*  Inbuilt Digital Multi-Effects Processor
*  Auxiliary Returns
*  G1-G2 and G3-G4 Route Switch to Master output
*  Full control of FX1 and FX2 Effects parameters

Dimensions: W70cm x D50cm x H15cm
