VM2-PRO ANALOG VU METER  £195





CLICK ON IMAGE FOR MORE DETAILS
AND ONLINE ORDERING

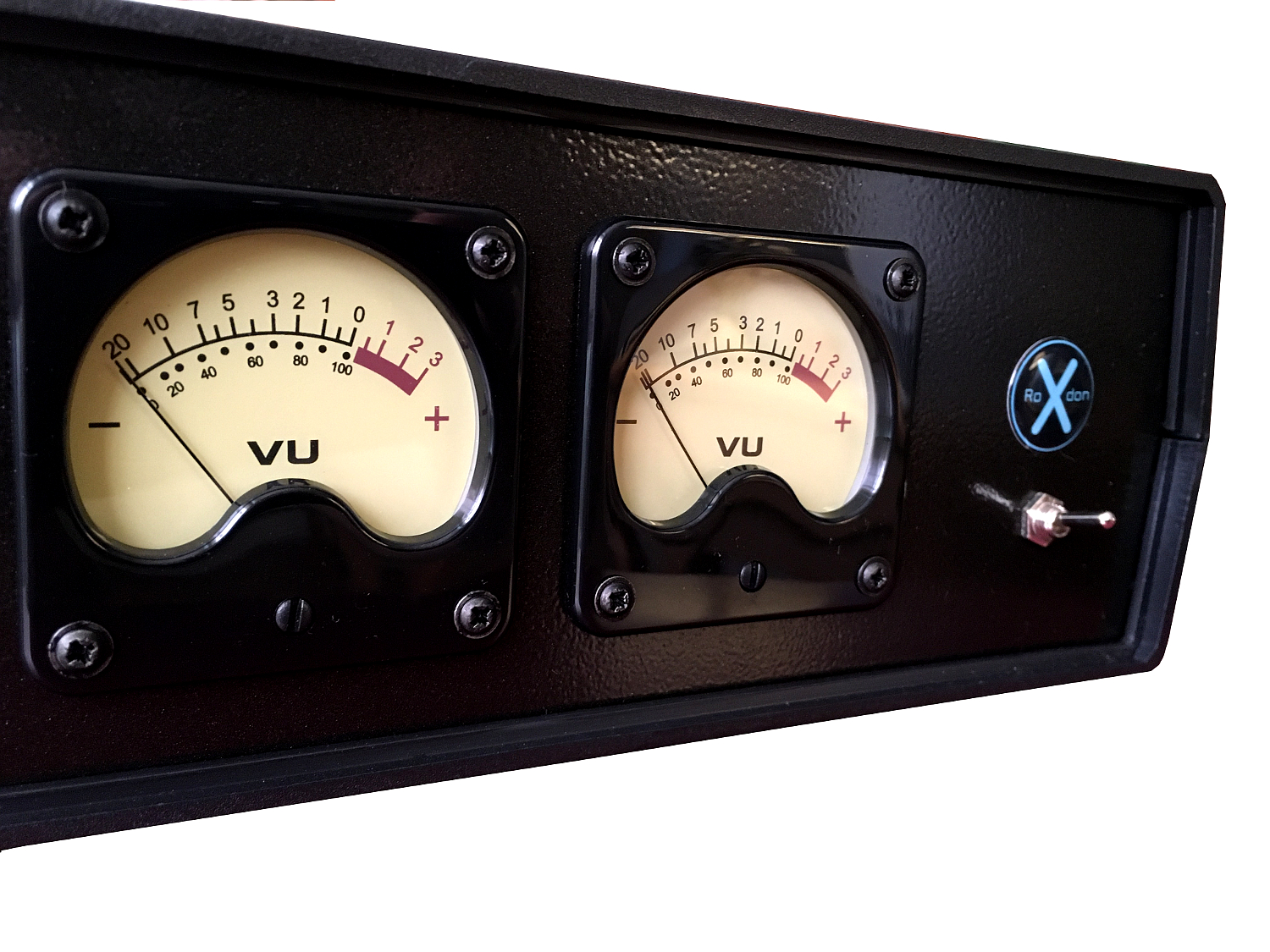

The RoXdon VM2-PRO is a 2-channel Professional Analog VU Meter featuring accurate high quality vintage style VU meters. The VM2-PRO is intended to be used in a studio recording setup for measurement of recording levels. The unit is powered by an external International Power Supply therefore preventing interaction with the audio circuit. The Power Supply includes UK, EU, USA & Australian adapters. A convenient on-off power switch is located on the front panel.

The meters are calibrated for the Pro Audio level standard, 0VU = +4dBu (1.228V into a 600 ohm load) and are driven by a VU driver circuit board so the connected audio remains unaffected.



FEATURES

* 1/4" Jack connections
* External International Power Supply (100-240VAC)
* Black ABS case (25cm Width x 15cm Depth x 9cm Height)
* High Quality Vintage Style Illuminated meters
* Base fitted with 4 rubber (3M) feet
* Pro Audio level, meter calibration



NOTE: Unit is not designed to be connected to amplifier speaker outputs
